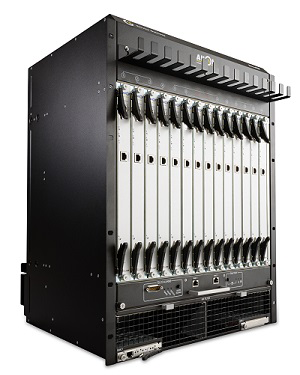

Allot Service Gateway Tera
Delivering the Digital Experience

Features:

Extreme Performance

Allot Service Gateway Tera (SG-Tera) provides the extreme performance and rich functionality that is needed to deliver digital lifestyle services in fixed, mobile and converged data networks operating in traditional, software-defined, and virtualized network environments. With 100 Gigabit Ethernet connectivity and terabits-per-second of throughput, this carriergrade platform helps service providers satisfy the ever-growing demand for Internet services and bandwidth.

Future-Proof Scalability

Modular platform architecture is designed for the tera era. Allot SG-Tera lets you start small and expand up (connectivity, throughput) and out (capacity) seamlessly. Pay-as-you-grow deployment reduces initial capital outlay and allows operators to respond quickly to market changes.

• Capacity: supports up to 15 million active subscribers (concurrently attached and active), and 360 million concurrent IP flows
• Connectivity: up to 8 x 100GE ports or 96 x 10GE ports
• Throughput: up to 500 Gbps in a single platform
• Clustering: supports up to 8 Allot SG-Tera platforms in a seamless cluster configuration, providing aggregate throughput of up to 4 Tbps
• Management: centrally configured and managed by Allot NetXplorer Management system, including full integration with Allot Subscriber Management Platform (SMP)

Asymmetric Traffic Handling

Allot SG-Tera maintains accurate Layer-7 identification of applications when asymmetric upstream and/or downstream IP flows are processed by two or more platforms.

High Availability

The platform is compliant with NEBS Level 3 and provides 1+1 redundancy at the system level, and N+1 blade-level redundancy mechanisms to ensure service continuity with no downtime due to component failure.

Open, Carrier-Grade Architecture

Engineered to AdvancedTCA® standards for off-the-shelf, carriergrade hardware, while standard software interfaces, protocols, and APIs facilitate rapid integration of third-party value-added services.

Intelligent PCEF/TDF

Compliance with 3GPP standards enables Allot SG-Tera to provide intelligent Traffic Detection Function (TDF) and Policy and Charging Enforcement Function (PCEF) in 3G/4G mobile data networks. This allows operators to leverage superior traffic identification and classification to enrich the policy decisions of PCRF elements, and to enhance the charging capabilities of online and offline charging systems (OCS, OFCS).

Single Point of VAS Integration

Allot SG-Tera offers a growing portfolio of value-added services hosted in the platform as well as real-time traffic steering to external and third-party VAS systems. As a single point of integration for these services, Allot SG-Tera facilitates fast and cost-effective roll-out and accelerated ROI. Fully integrated VAS currently include Allot WebSafe (URL filtering), Allot WebSafe Personal (parental control, anti-malware), Allot ServiceProtector (anti-DDoS, anti-bot), and Allot VideoClass (video optimization).

High-Resolution Data Records

From its vantage point in the network, Allot SG-Tera monitors and collects a rich variety of high-resolution usage data, including real-time transactions per user, per application, per device, per video session, per VoIP and Instant Messaging session, per Web session, and more. These flexible data records may be exported in standard formats to business intelligence systems and other operator systems for further manipulation and analysis. Frequency and triggers for data record export are configurable parameters, giving operators ready access to usage data that is critical to their business.

Specifications:

	Allot SG-Tera
Platform Configuration
Chassis	14-slot, AdvancedTCA (ATCA)
Maximum Available Slots	14
Core Controller (CC) Blade	1 to 12
Switch and Flow Balancer (SFB) Blade	1 to 4
Rear Input/Output (RIO) Blade	1 to 4
Service Blades	Up to 10
Capacity
Throughput per Platform	500 Gbps
Throughput per Cluster	4 Tbps using 8 platforms
Number of Flows	360 Million (30 Million per CC)
Number of Active Subscribers	15,000,000
Number of Lines / Pipes / Virtual Channels	512 / 4,800,000 / 24,000,000 (400,000 / 2,000,000 per CC)
Interface Types
Ethernet Interfaces	96 x 10 Gigabit Ethernet 8 x 100 Gigabit Ethernet
Management	2 x 1 Gigabit Ethernet or 2 x 10 Gigabit Ethernet (with 1:1 high availability)
Console	Serial, RJ45 Connector
Availability
Bypass Hardware	Up to 4 independent, passive bypass units, supporting either 8 fiber-optic ports (4 links) or 16 fiberoptic ports (8 links) or 24 fiber-optic ports (12 links) per unit
High Availability	1+1 system-level redundancy N+1 redundancy of Core Controller blades
Management	Active-Standby HA on management ports
System	Redundancy for PEMs and fans
Dimensions
Chassis Size	Standard 14U by 19" rack mount, height 619.5mm (24.3"), width 444mm (17.48"), depth 433.04mm (17.04"), with PEMs
Chassis Weight	Up to 87.6kg (193lb)
AC Power Supply Size	External 1U by 19" rack mount, 445 x 43.6 x 401mm, 13.4kg (29.5lb)
Multi-Port Bypass Unit (8 ports)	External 1U 19" rack mount, LxWxH 439.5x130x43.6mm, 2.4kg (5.3lb)
HD-16 Multi-Port Bypass Unit	External 1U 19" rack mount LxWxH 439.5x145x43.6mm, 3kg (6.6lb)
HD-24 Multi-Port Bypass Unit	External 1U 19” rack mount LxWxH 439.5x145x43.6mm, 3kg (6.6lb)
Power
Input DC	-48V DC (-40V to -60V DC), 2 x 190A Max
Number of DC PEMs	2
DC PEM Redundancy	1+1
Input AC	200 – 240VAC, 50/60Hz, 4 x 12A/240V Max, 4 x 15A/100V Max
AC Rated Output Power per PSU	180 < Vin ≤ 265Vac, 4 x 2496W 170 ≤ Vin ≤ 180Vac, 4 x 2400W 100 ≤ Vin ≤ 132Vac, 4 x 1500W 85Vac ≤ Vin < 100Vac W Linear derating 1.3% per V
Number of AC PS Modules per PSU	4
AC Redundancy	N+1 or N+N
Heat Dissipation	25,950 BTU/hour (in full configuration)
Environment
Operating Temperature	5 to 40°C (41 to 104°F)
Operating Temperature, short term	-5 to 55°C (23 to 131°F)
Storage Temperature	-40 to 70°C (-40 to 158°F)
Storage Relative Humidity	95%, non-condensing at temperatures of 23 to 40°C (73 to 104°F)
Operating Humidity, nominal	5 to 85% RH
Operating Humidity, short term	5 to 90% RH
Operating Altitude	-60 to 1800m (-197 to 5906 ft) at 40°C Max 1801 to 4000m (5909 to 13123 ft) at 30°C
Standards
NEBS	Designed to meet NEBS Level 3 Telecordia GR-1089-CORE, GR- 63-CORE
CE Conformity	2004/108/EC Electromagnetic Compatibility Directive 2006/95/EC Low Voltage Equipment directive 2011/65/EU RoHS Restriction of the use of certain hazardous substances 2002/96/EC WEEE Union’s Wasted Electrical and Electronics Equipment Directive
Safety	EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 EN 60825-1:2007 EN 60825-2:2004 + A1:2007 + A2:2010 UL 60950-1:2007 R14.10 CAN/CSA-C22.2 No. 60950-07 + A1:2011 +A2:2014 UL94
EMC	EN 55022:2010/AC:2011 EN 55024:2010 ETSI EN 300 386 V1.6.1:2012-04 for use in telecommunication canters EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6 FCC CFR 47 Part 15B Class A Industry Canada ICES-003 Issue 5; C108.8-M1983 Australia ACMA, AS/NZS CISPR 22:2009 + A1:2010 VCCI Class A Technical Requirements, V-3/2013.04
RoHS	EN 50581:2012
Quality System and Environment	Certified to standards ISO 9001, ISO/IEC 90003, ISO 14001, SI ISO 27001
